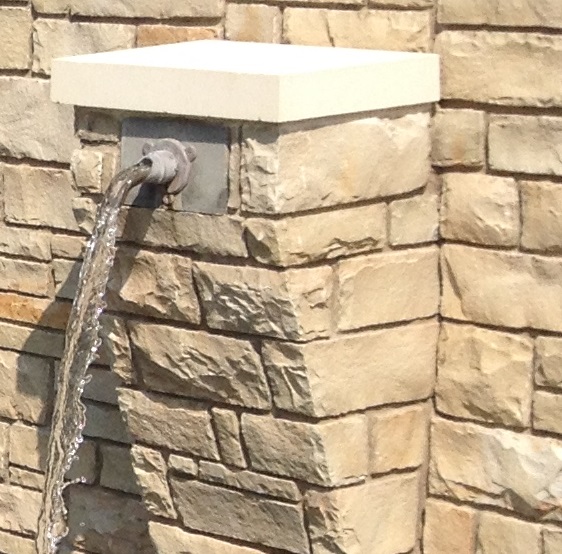

Pool A consists of a single level rectangular basin that contains (7) precast spillways. Below each of the seven spillways is a stainless steel LED light fixture with white diodes to illuminate water from the spillway. The pump equipment for Pool A is located in a pre-fabricated Series 2 underground pumping vault with tile-set access hatch. The vault contains a 5 HP fountain pump, cartridge filter, ionization unit, chemical feeder, and UL electrical control panel.

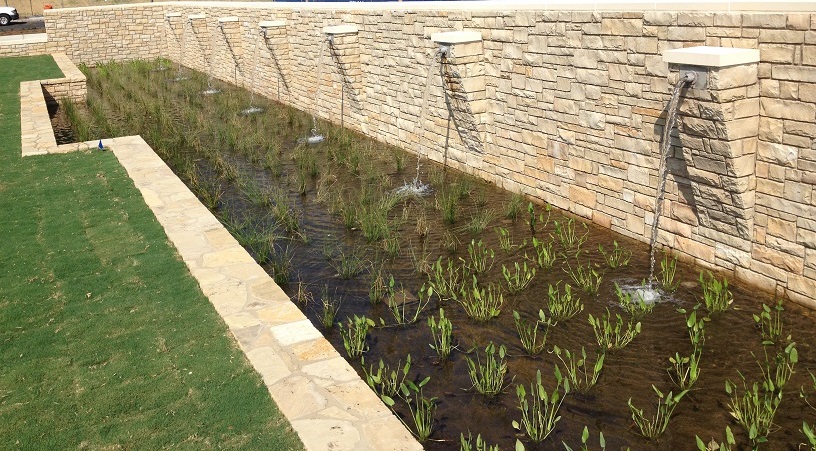

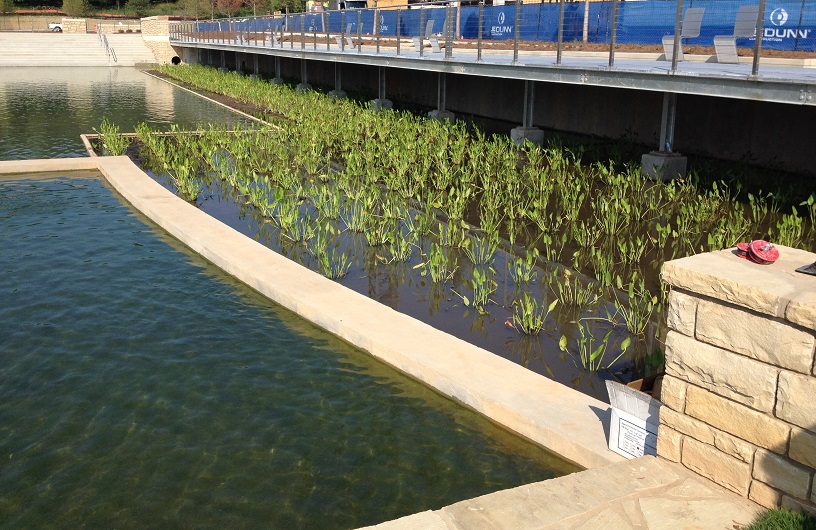

Pools B & C are connected and run off a combined pump system. Pool C contains a single precast spillway, approximately 12” wide, and introduces water into the system. Located in Pool B are plant shelves that contain aquatic life. The fountain equipment is located in a pre-fabricated Series-4 underground pumping vault with tile-set access hatch. The vault contains two 1 HP display/filter pumps, two biological bead filtration systems, and two UV sterilizers. The fountain U.L. Listed electrical control panel and all necessary controls and breakers are located in the vault.
