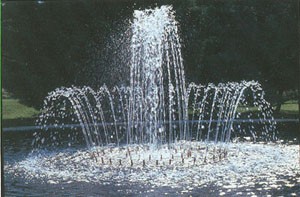

RDDK Series Dual Brass Spray Fountain Kit with White LED Lighting

The RDDK Series Dual Brass Spray Fountain Kit provides a coordinated selection of components, pre-engineered and tested to produce dual circular spray patterns using a series of clear stream precision jets.  The Dual Brass Spray Ring kit offers ease of installation and low installed equipment cost.  White ETL Listed freestanding LED lighting is included for nighttime viewing.  The RDDK includes: two (2) Brass spray rings with adjustable brass nozzles (.187″ orifice), a bronze U.L. Listed submersible pump(s), bronze submersible junction box(es), brass conduit slab penetration fittings, and a mechanical water make-up unit.  The kit also includes a power supply enclosure, an overflow drain, a floor drain, copper manifolding with support legs, as well as hose/clamp connections and regulating/bypass valves as required.  120V., single phase power with 20 Amp G.F.C.I. breaker for each pump circuit, and 15 Amp G.F.C.I. breaker for each lighting circuit (115/230V., 1 Phase, 3-wire required for RDDK-3672).  Please refer to the cut sheet for model selections, suggested pool diameters, and additional information.


  •  Fountain kits are pre-engineered for a 16″ operating water depth.
  • 10″ minimum wall thickness required for sidewall overflow fitting; 8″ for standpipe type overflow fitting
