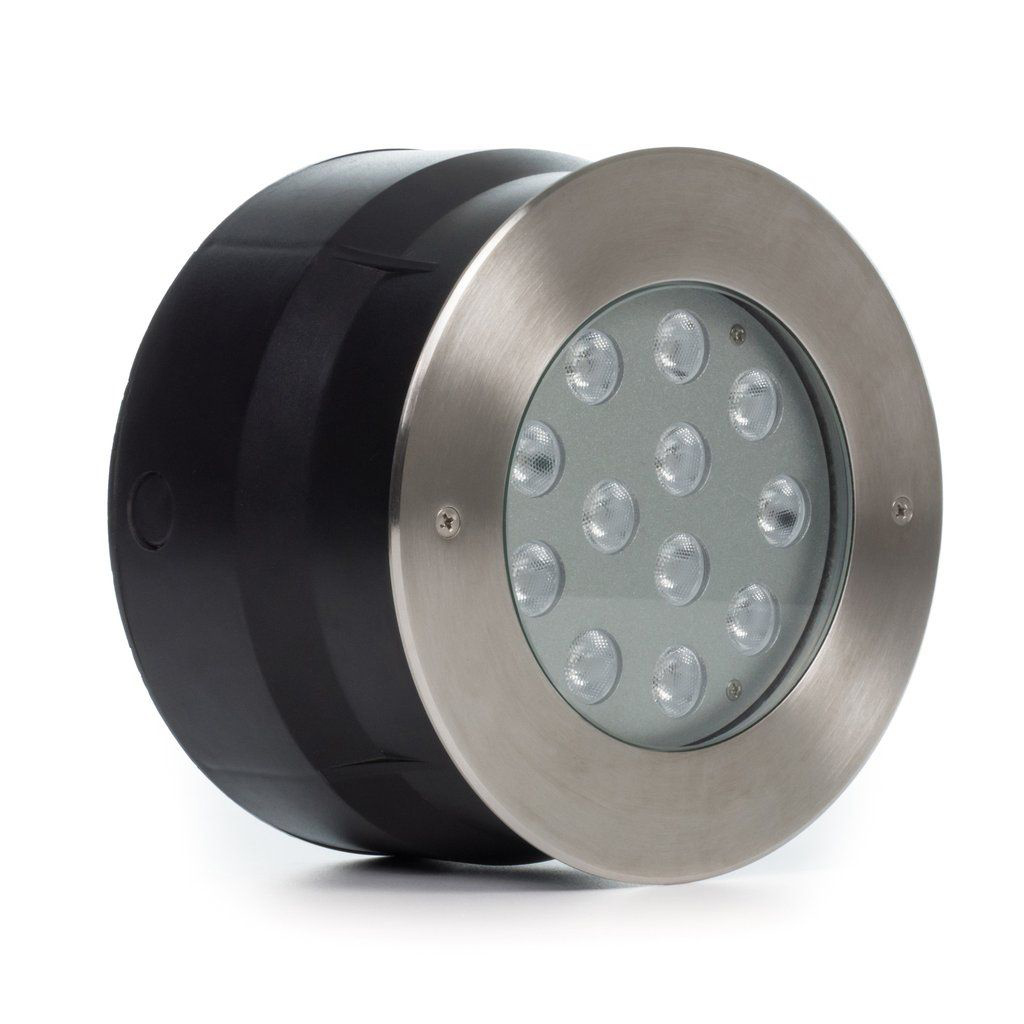

RFL-FM-24VDC-36W Submersible Light Fixture

The RFL-FM-24VDC-36W ‘Flush-Mount’ LED Submersible Light Fixture is designed for use in any fountain application where a flush mount installation (floor or wall)with a high output LED light fixture is required. The RFL-FM-LED  is U.L. Listed, 24VDC, with a concrete forming sleeve for flush-to-floor or wall installation,  high output LED diodes, a stainless steel and aluminum housing and fasteners, a tempered glass lens, a silicone lens gasket, a chromed brass cord entrance fitting, and 25 feet of 18 AWG SJOW cable. .  Color temperatures available are warm white (3000K), cool white (4000K), and day white (6000K), as well as RGB. Please refer to the cut sheet for additional information and wiring schematics.  Use with Roman Fountains Lighting Control Panels or flush-mount submersible junction boxes.

Notes:

  • Specify color temperature when ordering
  • Requires 24V DC power supply for operation.  Warranty is void if proper power supply is not utilized.
  • RGB Lights require DMX Driver for color-change programming

Documentation & Downloads
