RAVS-1600-DD Diffuser Plate & Sump 16″

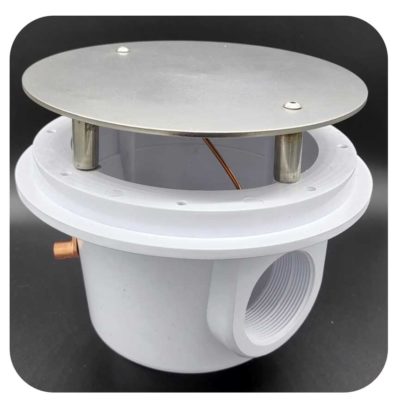

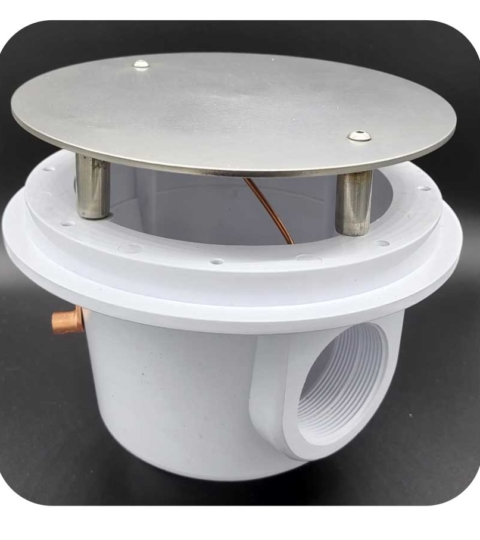

The RAVS-1600-DD 16″ sq. Diverter Plate and Sump Assembly is designed for use in fountains and reflecting pools using remote pumping systems.  It is intended for use as discharge diffusion devices to return water to the pool without turbulence.  The RAVS-1600-DD is constructed of a heavy duty FRP sump with integral waterstop flange, 4″ side and 3″ bottom  connections with a 2″ “vacuum breaker” connection. The 3″ internal connection is provided with a 3″ threaded male plug. The unit has a 3/16″ thick brass diverter plate with brass spacers and TORX type stainless steel vandal resistant safety fasteners. Recommended low rate is 200 GPM at a 16″ water depth.  Please refer to the cut sheet for additional information.
