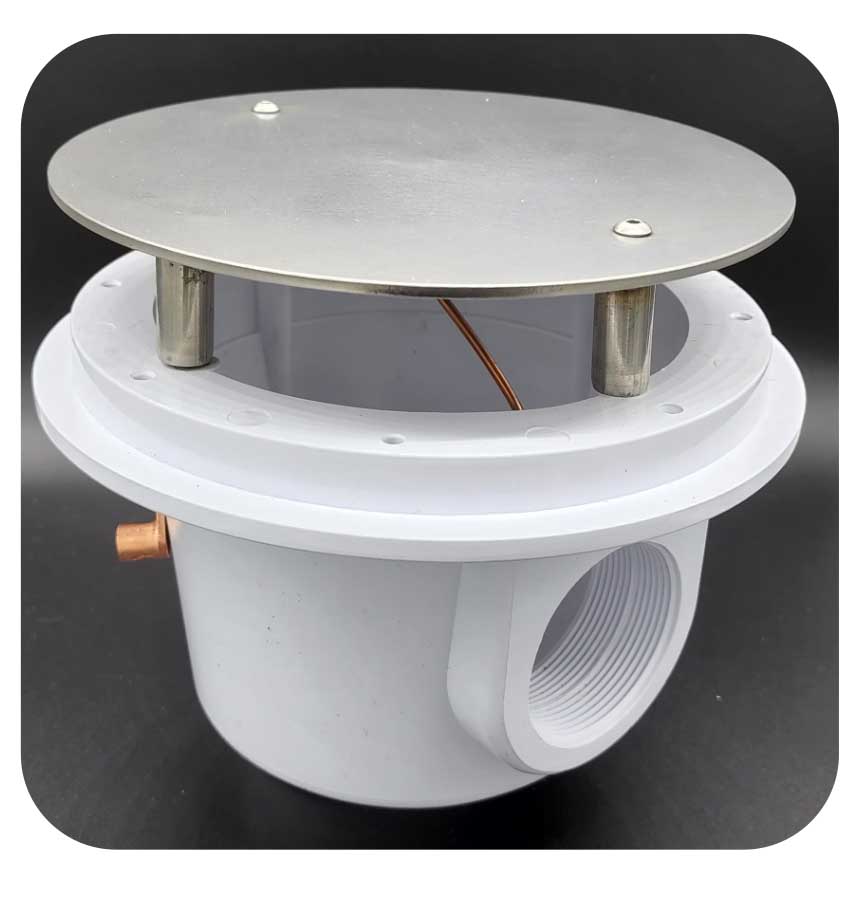

RAVS-800-DD 8″ Diffuser Plate & Sump

The RAVS-800-DD 8″ dia. Diverter Plate & Sump Assembly is designed for use in fountains and reflecting pools using remote pumping systems. They are intended for use as discharge diffusion devises to return water to the pool without turbulence.  The RAVS-800-DD consists of a heavy duty injection molded ABS sump and integral waterstop flange with 2″ (F) N.P.T. side and bottom connections. There is a PVC male threaded plug for unused connection.  It features an 8″ diameter natural finish brass diverter plate, with brass spacers and Allen head type Stainless Steel vandal resistant safety fasteners. Recommended maximum flow rate is 50 GPM at a 16″ water depth.  Please refer to the cut sheet for additional information.
