7.201 RDP-1 SERIES

7.201 RDP-1 SERIES

RDP-1 Series Direct Burial Pump Vault

The RDP-1 Series 1 Direct Burial Pump Vault is designed for small fountains where concrete pump stations are not practical and interior mechanical space is not available.  All units are factory assembled and tested prior to shipment to job site, minimizing installation and maintenance costs. Systems can be furnished with optional fill manifold, G.F.C.I. protected lighting circuit. LED power supplies, sump pump,  and erosion feeder.  The RDP-1 Series consists of a 3′-5″ sq. x 2′-8″ deep heavy duty FRP vault with white gel-coat interior and brown gel-coat exterior.  It is furnished with 36″ Sq. fiberglass reinforced plastic lid with stainless steel piano hinge attachment and lock hardware (LOCK BY INSTALLER). The system contains an RSPP-B self-priming display pump with integral suction strainer; an RCCF-050 50 sq. ft. cartridge filter unit, 3″ vent connections with a 105 CFM vent fan; a 2″ floor drain; an RTCP-PCLC with a  UL Listed time clock and power distribution breakers (Class A GFCI as required). Please refer to the cut sheet for power requirements, available models, pump curves, additional information.

Note:  Custom fabrication per project details.  Long lead times apply.

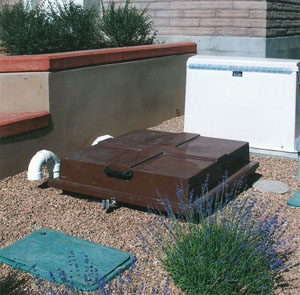

RDP-1 Direct Burial Vault

Documentation & Downloads
