5.106 RFL-FM-LED ‘Flush-Mount’ LED Submersible Light Fixture

RFL-FM-LED ‘Flush-Mount’ LED Submersible Light Fixture  (formerly RFL-CG-FM-LED)

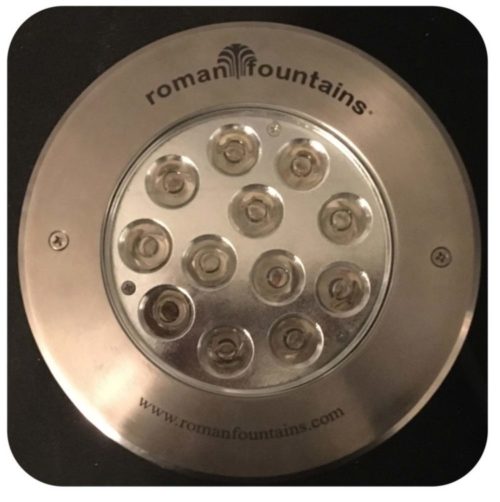

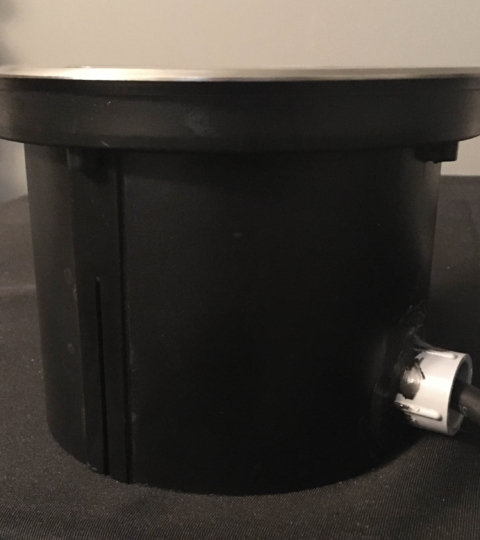

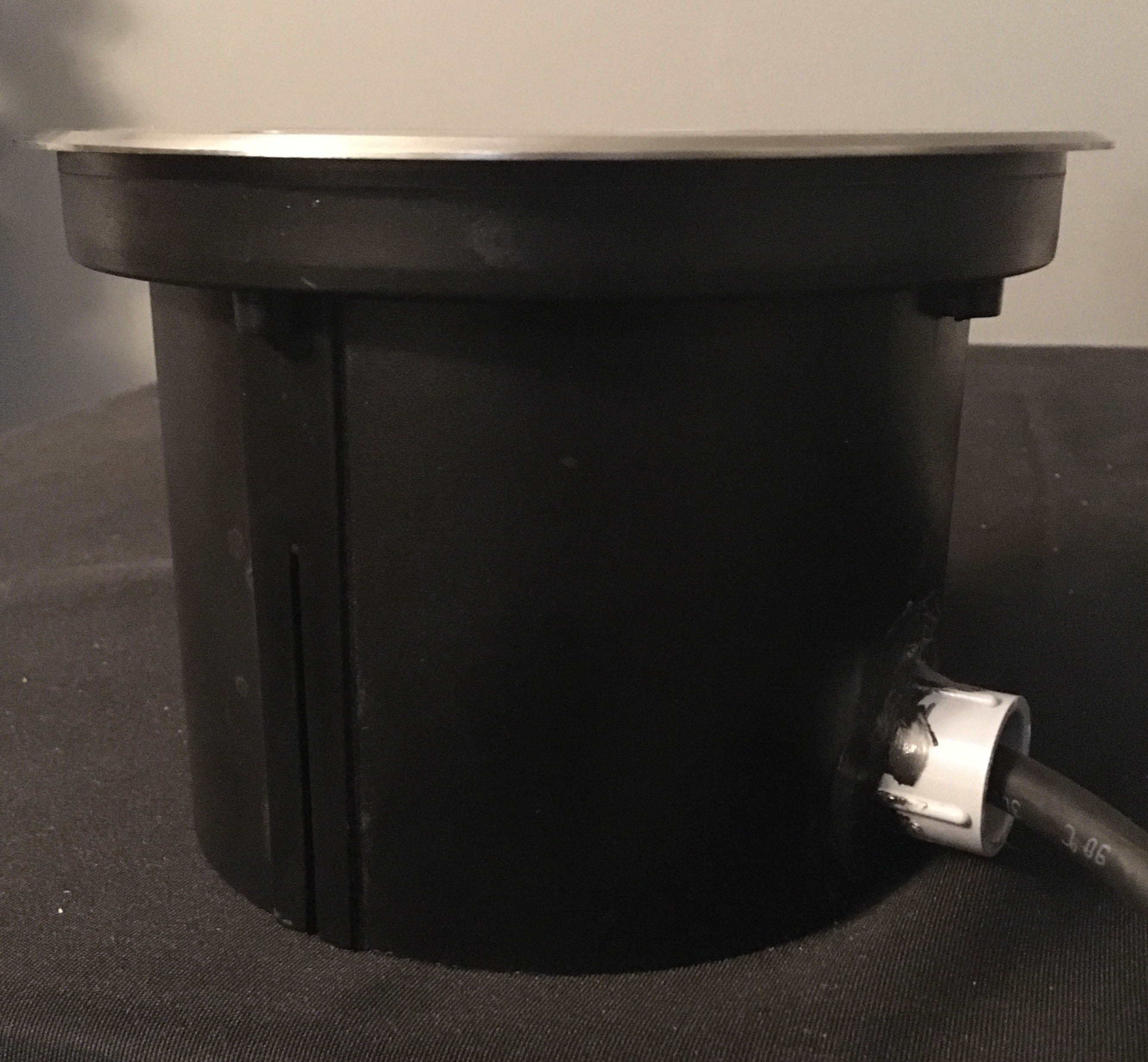

The RFL-FM-LED ‘Flush-Mount’ LED Submersible Light Fixture is designed for use in any fountain application where a flush mount installation (floor or wall)with a high output LED light fixture is required. The RFL-FM-LED  is 12VDC, with a concrete forming sleeve for flush-to-floor or wall installation,  high output LED diodes, a stainless steel and aluminum housing and fasteners, a tempered glass lens, a silicone lens gasket, a chromed brass cord entrance fitting, and 19 feet of 18 AWG SJOW cable. Fixture comes in either White (‘Cool’ White 5000K) or RGB. Please refer to the cut sheet for additional information and wiring schematics.  Use with Roman Fountains Lighting Control Panels or RCLG-150-A 12VDC power supply.

Notes:

  • Specify W (‘Cool’ White 5000K) or RGB (Red/Green/Blue) when ordering
  • Requires 12V DC power supply for operation.  Warranty is void if proper power supply is not utilized.
  • RGB Lights require DMX Driver for color-change programming

Documentation & Downloads
